Company Introduction

Focused on Electronic Packaging Materials
Building High-end Manufacturing Strength

Chongqing Qunwin Electronic Materials Co. Ltd.focuses on high-end electronic packaging materials and deeply engages in R&D and intelligent manufacturing of precision Tin-Based solders. The company was founded in 2007 and is located in the Chongqing Fuling National Economic and Technological Development Zone, with 19 years of deep engagement in electronic soldering, It is a technology enterprise integrating R&D, production, sales and service, Main products include BGA Solder Ball, CCGA Solder Column, Solder Paste, Copper Core Solder Ball, Nano Ag Solder Paste, Solder Flux Paste, Liquid Metal and other advanced packaging materials, It is a Tin-Based solder manufacturer with meaningful scale and a relatively rich product portfolio. With three production bases in Chongqing and a Shenzhen branch totaling about 7,000 m², it has built a multi-site collaborative supply network covering China. The company has been recognized as a National High-tech Enterprise and a national SRCI "Little Giant" enterprise, It is a Chongqing municipal SRCI SME and a technology-based SME, and holds a Chongqing Enterprise Technology Center, It has been listed in Chongqing's hard-tech SME support pool, and is a backbone enterprise with strong technical strength and core competitiveness in domestic high-end electronic packaging Tin-Based materials.

  • National High-tech Enterprise, SRCI Little Giant enterprise
  • 16+ independently developed core patents
  • Successfully developed Copper Core Solder Ball, Micro-coil Spring and other advanced packaging Tin-Based materials with breakthroughs in related niches
19 Years
16+ Core Patents
>=0.03 mm Ultra-fine Diameter
Solder Ball
Solder Column
Triple System Certification
Independent Controllable / Localized Supply
Products

Precision Tin-Based Materials Portfolio

Solder Ball Series

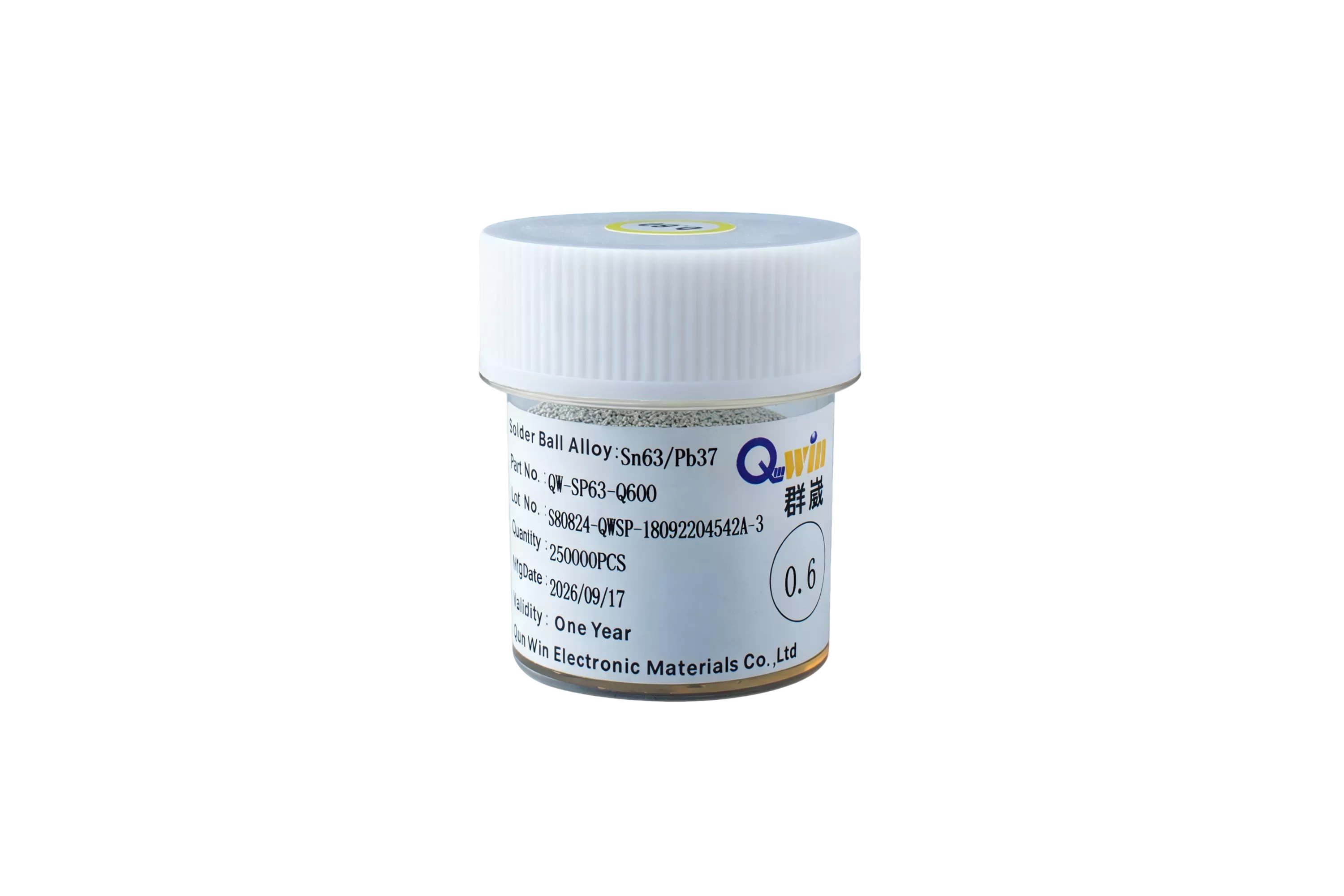

Solder Ball

Solder Ball features high sphericity and tight dimensional tolerance. The product line covers multiple alloys and diameters to meet mainstream advanced semiconductor packaging needs. Diameter range: 30-2000 μm, with custom specifications available.
Solder Ball Series

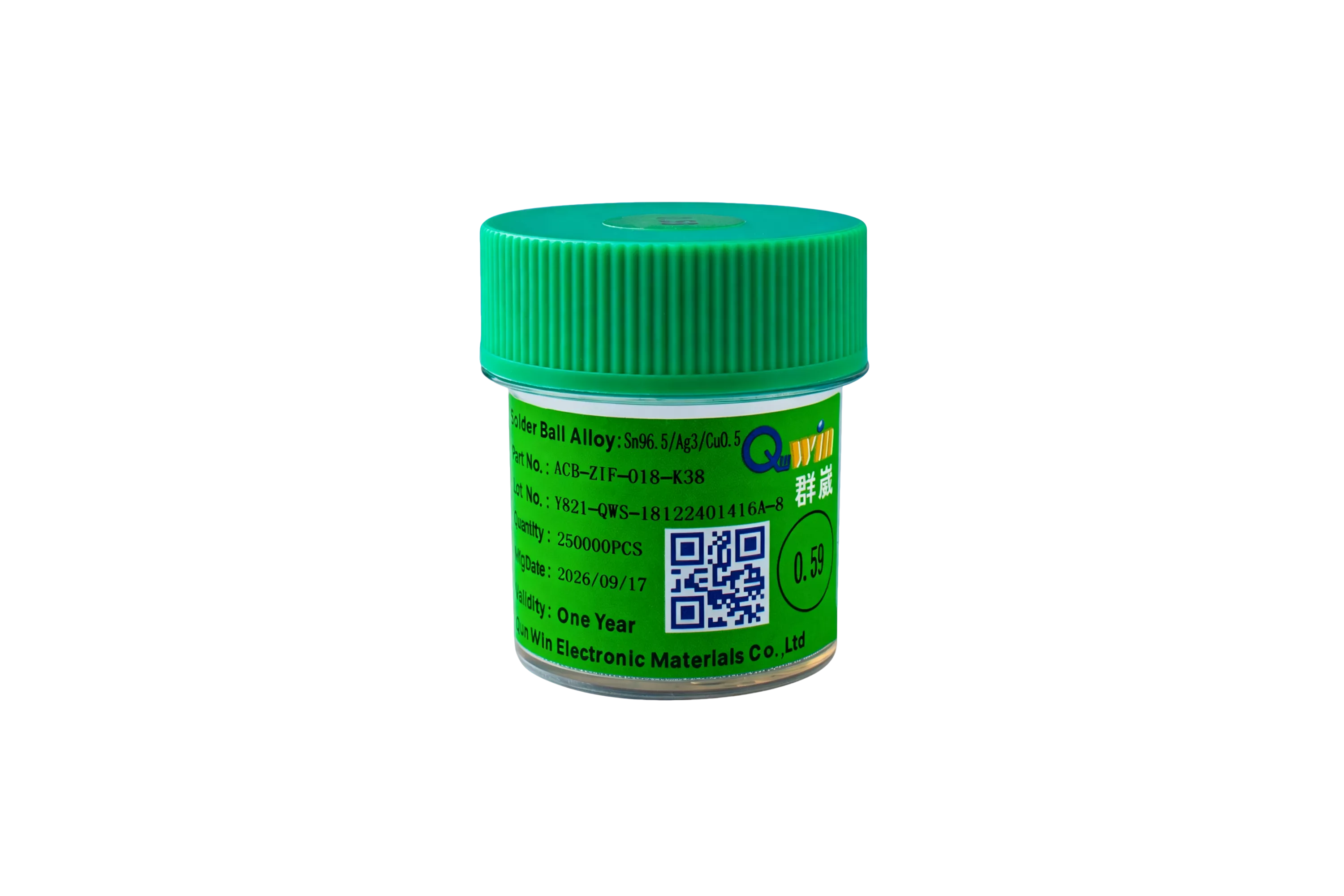

Low-temperature Series

Low-temperature tin-based solder includes LT solder ball, LT solder paste, LT solid-core solder wires and LT rosin-cored solder wire.Taking LT Sn-Bi solder paste as an example, its soldering process is compatible with standard electronic assembly technology using Surface Mount Technology (SMT). In comparison, the operating temperature of LT Sn-Bi solder paste is 70°C lower than that of conventional tin-based solder, only reaching 180°C. As the soldering temperature of LT Sn-Bi solder paste drops from 250°C to 180°C, thermal stress generated during soldering is reduced, which effectively lowers the warpage rate of printed circuit boards.
Solder Ball Series

Solder Ball

Solder Ball features high sphericity and tight dimensional tolerance. The product line covers multiple alloys and diameters to meet mainstream advanced semiconductor packaging needs. Diameter range: 30-2000 μm, with custom specifications available.
Solder Column Series

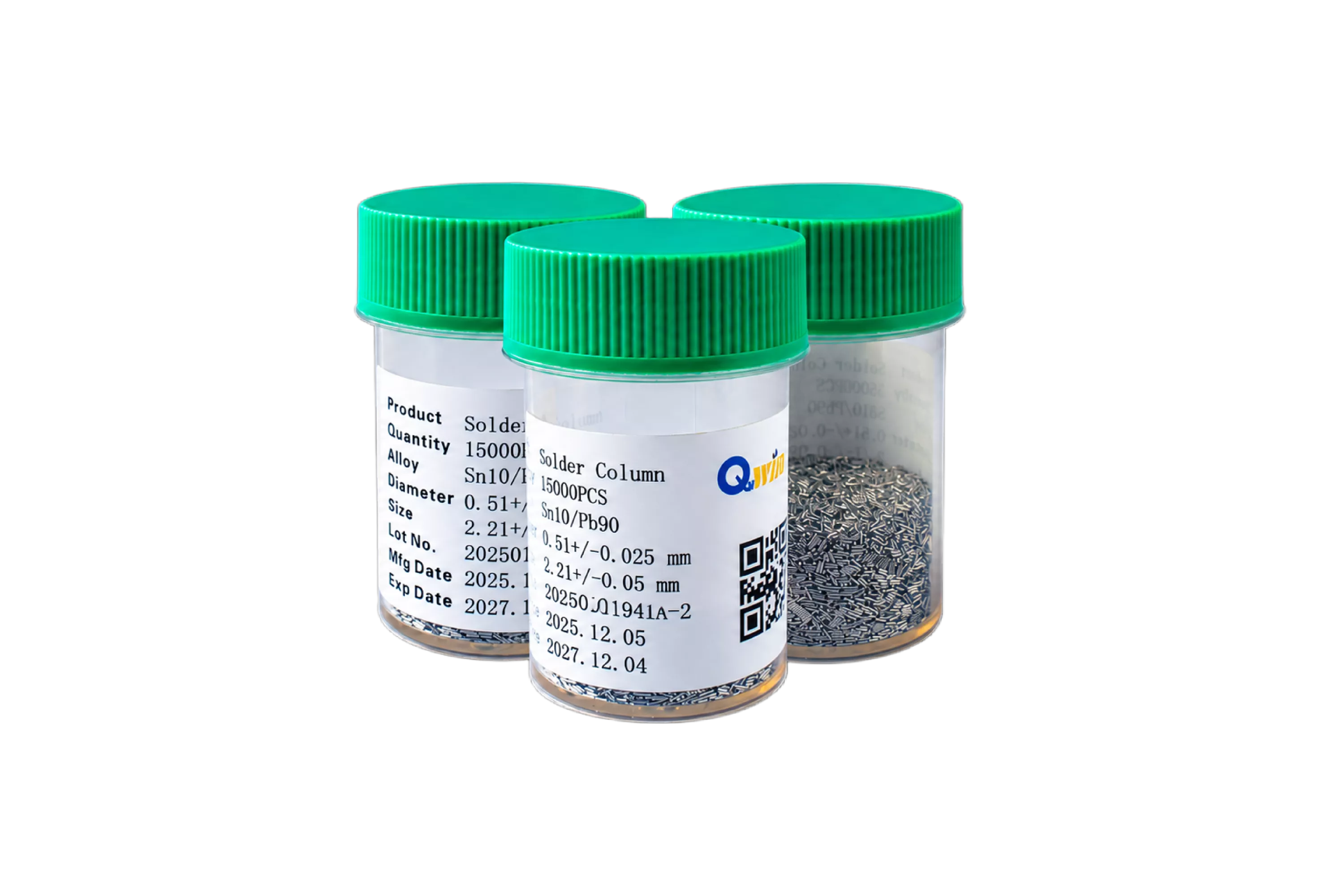

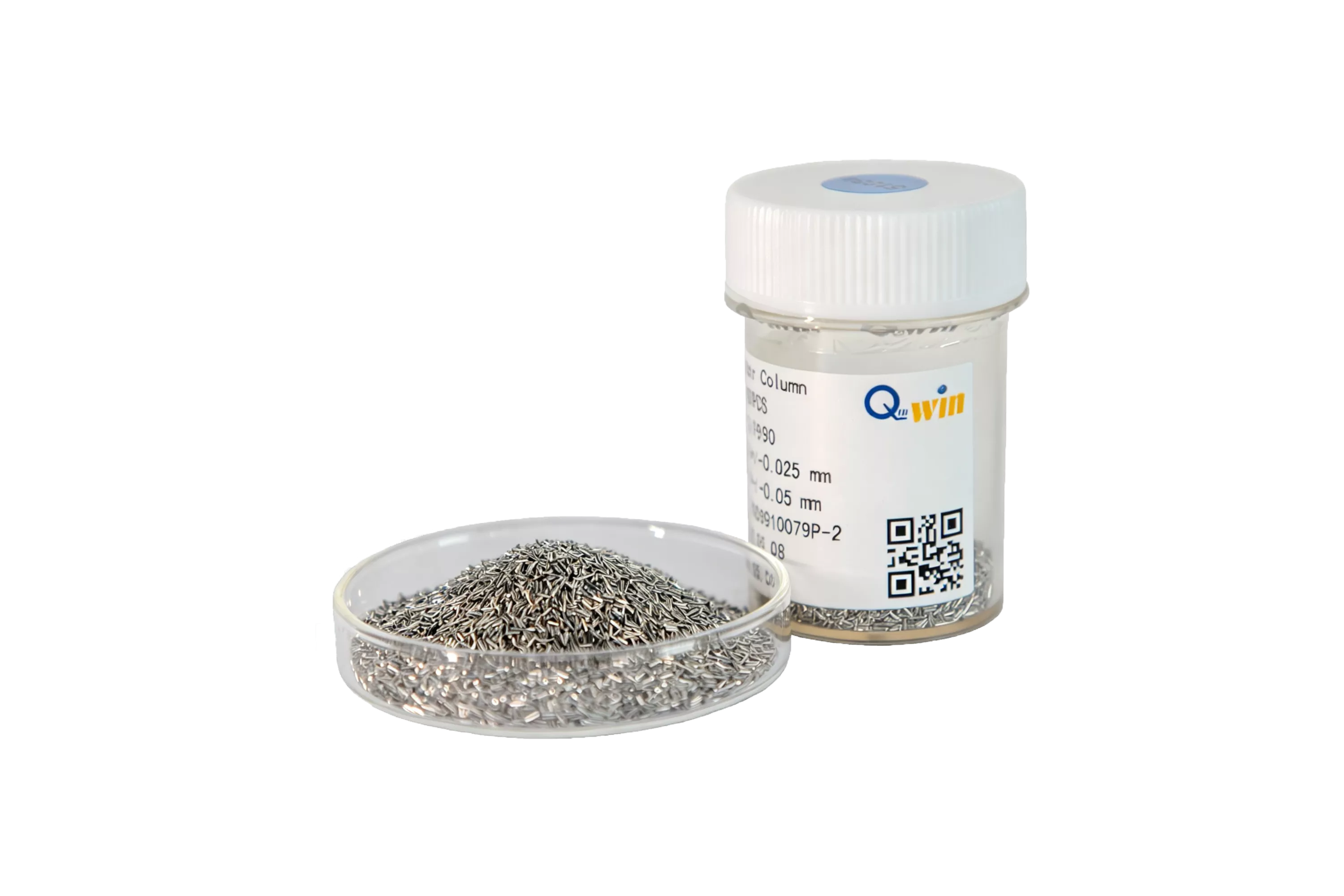

Solder Column

Solder column is widely used in aerospace, military and large servers, which can solve the problem of thermal expansion coefficient mismatch in the packaging of large ceramic chips and improve the reliability of welding spot.
Solder Column Series

Solder Column

Conventional solder column is manufactured with mature high-lead alloy materials. Depend on their excellent wettability and solderability, they deliver cost-effective and high-efficiency interconnection solutions for standard ceramic packaging. Featuring mature processes and stable quality, this product satisfies general application requirements while balancing cost efficiency and mass delivery capacity.
Solder Column Series

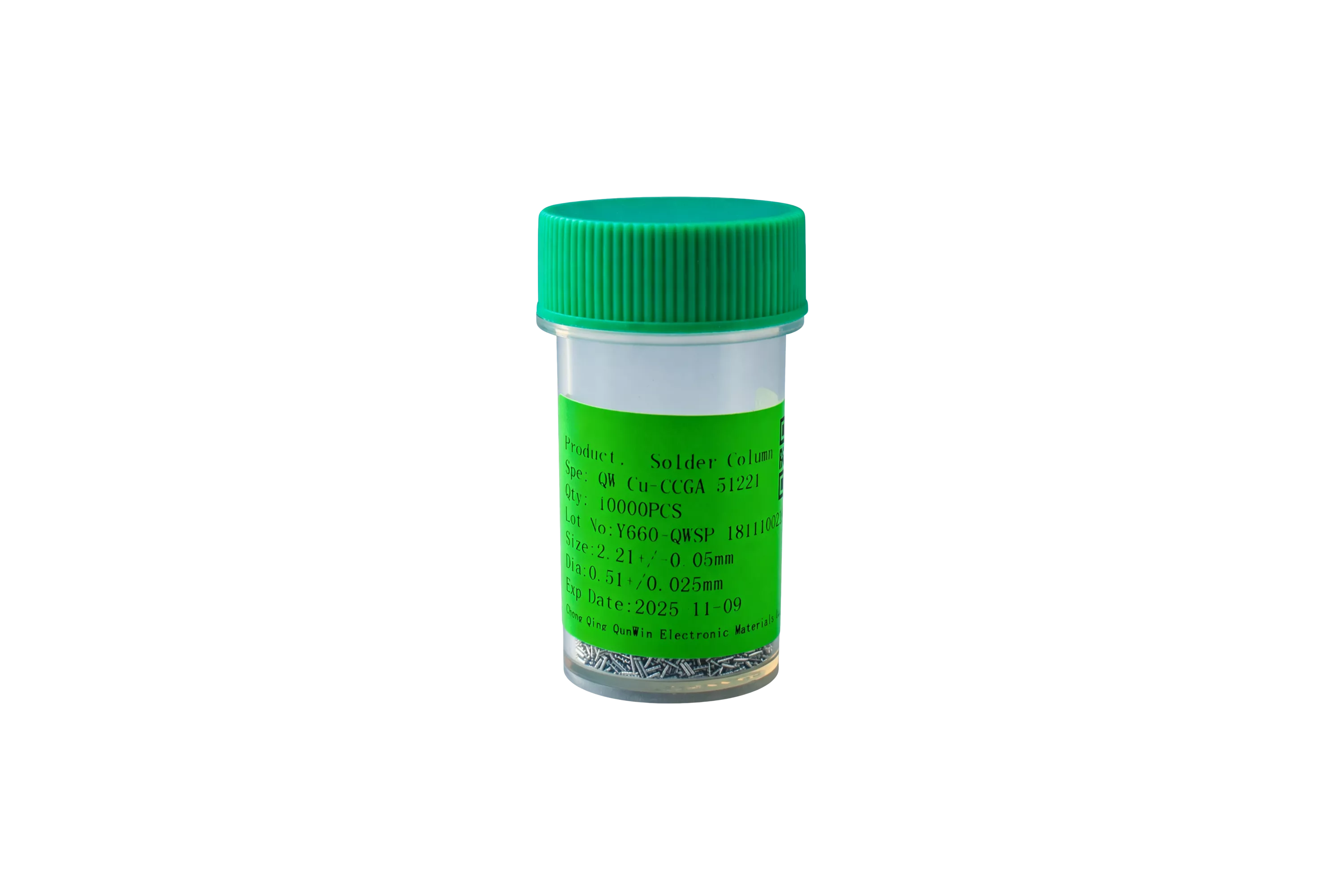

Column with Copper Wrap

Column with copper wrap adopts high-lead solder column as rigid core, with thin copper tape precisely wound externally to form a composite structure. This design ingeniously combines the soldering wettability of high-lead material and the ductility of copper, creating an interconnection form with both rigidity and flexibility. It is specially developed to mitigate thermal expansion mismatch between ceramic packages and organic printed boards.
Solder Column Series

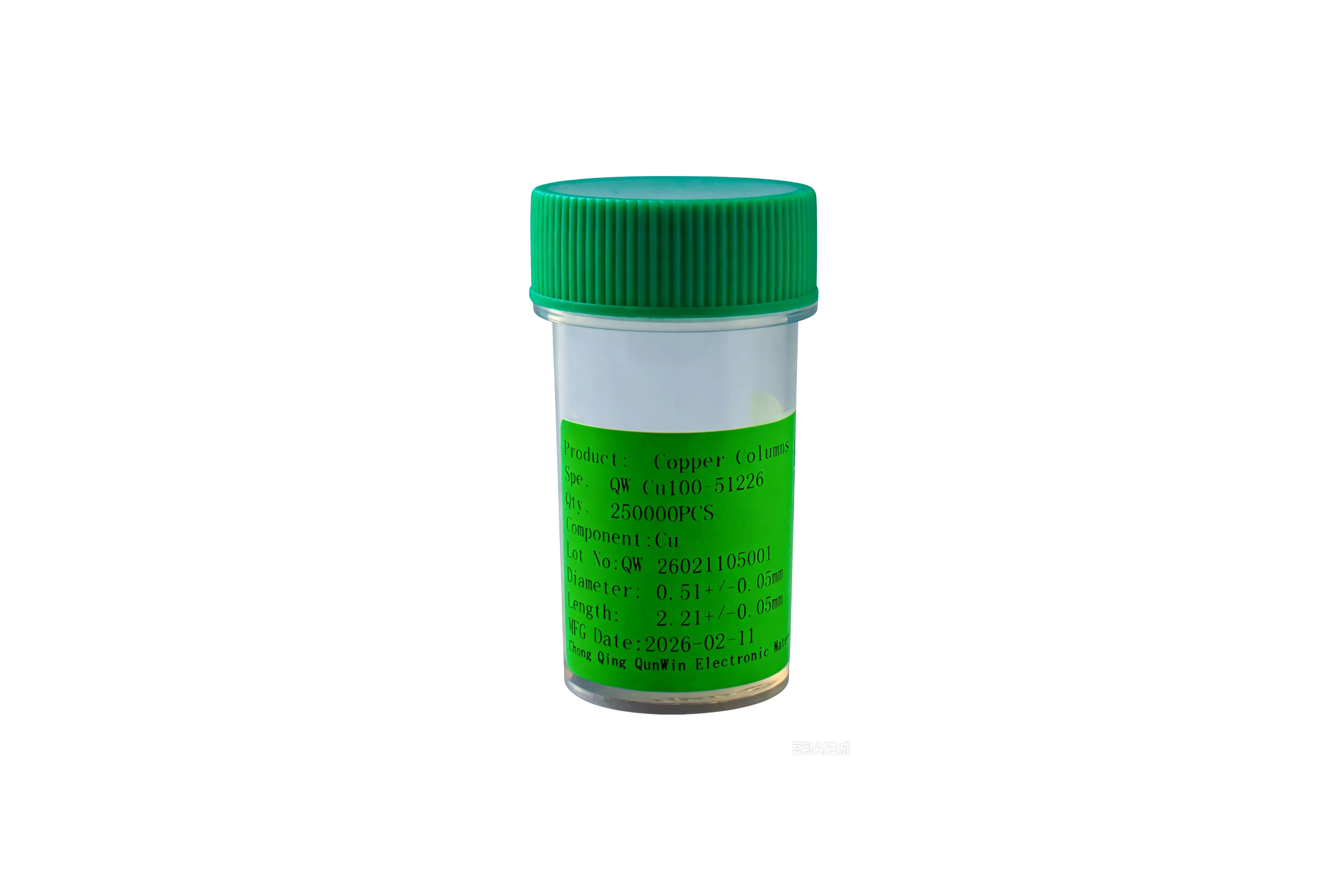

Copper Column

Copper column interconnection solution adopts high-purity copper as the substrate, with optional gold or tin plating on the surface, to fully leverage the excellent electrical and thermal conductivity of copper materials. Developed specifically for advanced packaging scenarios with stringent requirements on electrical performance and thermal management, this product delivers reliable interconnection assurance for high-performance chips through low interconnection resistance and efficient heat dissipation paths.
Solder Column Series

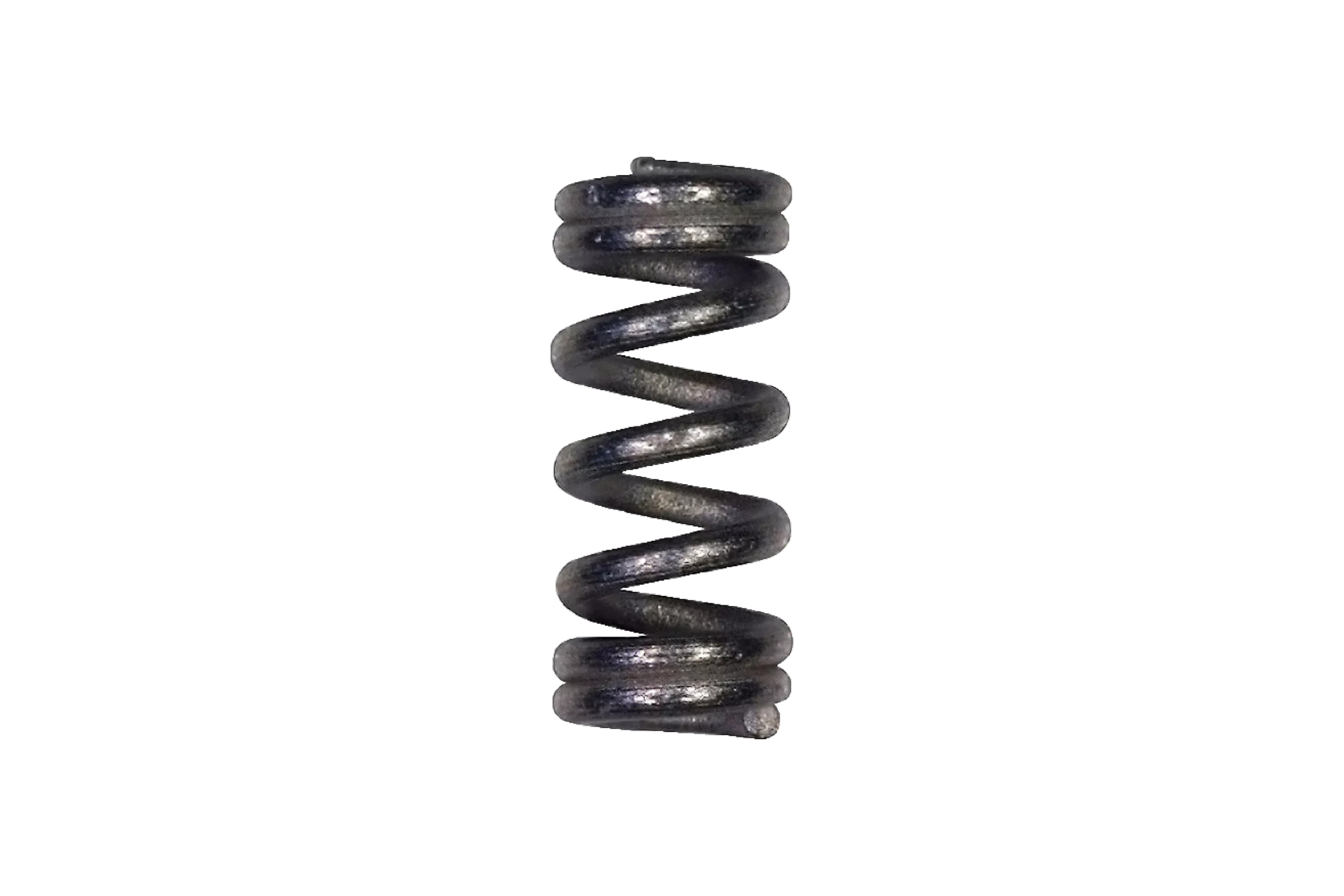

Micro-coil Spring

Micro Coil Spring (MCS) features a unique precision helical spring structure wound from elastic metal wire. It is an interconnection component engineered for extreme dynamic environments. Depend on its elastic deformation capability, it acts as a "mechanical filter". Under high-frequency vibration and severe shock conditions, it absorbs and dissipates mechanical stress to protect the primary solder joints from fatigue damage.
Solder Column Series

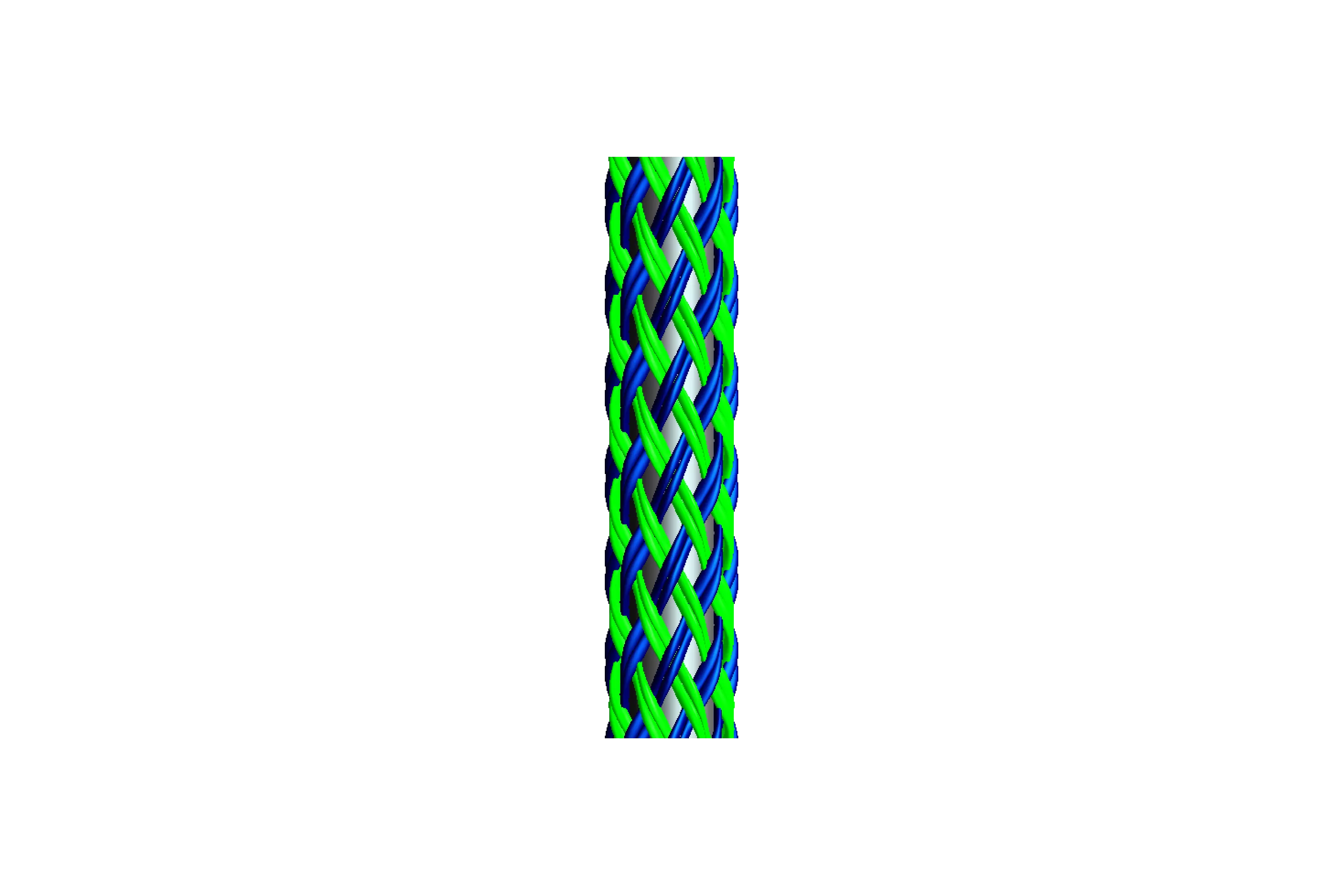

Column with Copper Wire Braided

Column with copper wire braided is precisely formed by braiding multiple strands of high-purity copper wires, creating an interconnection structure with macroscopic flexibility. This product utilizes the micro-sliding and overall deformation capabilities among the multiple copper wires to achieve gradient dispersion and uniform release of stress, providing an effective solution to the thermal-mechanical mismatch problem between large-sized ceramic packages and organic substrates.
Solder Column Series

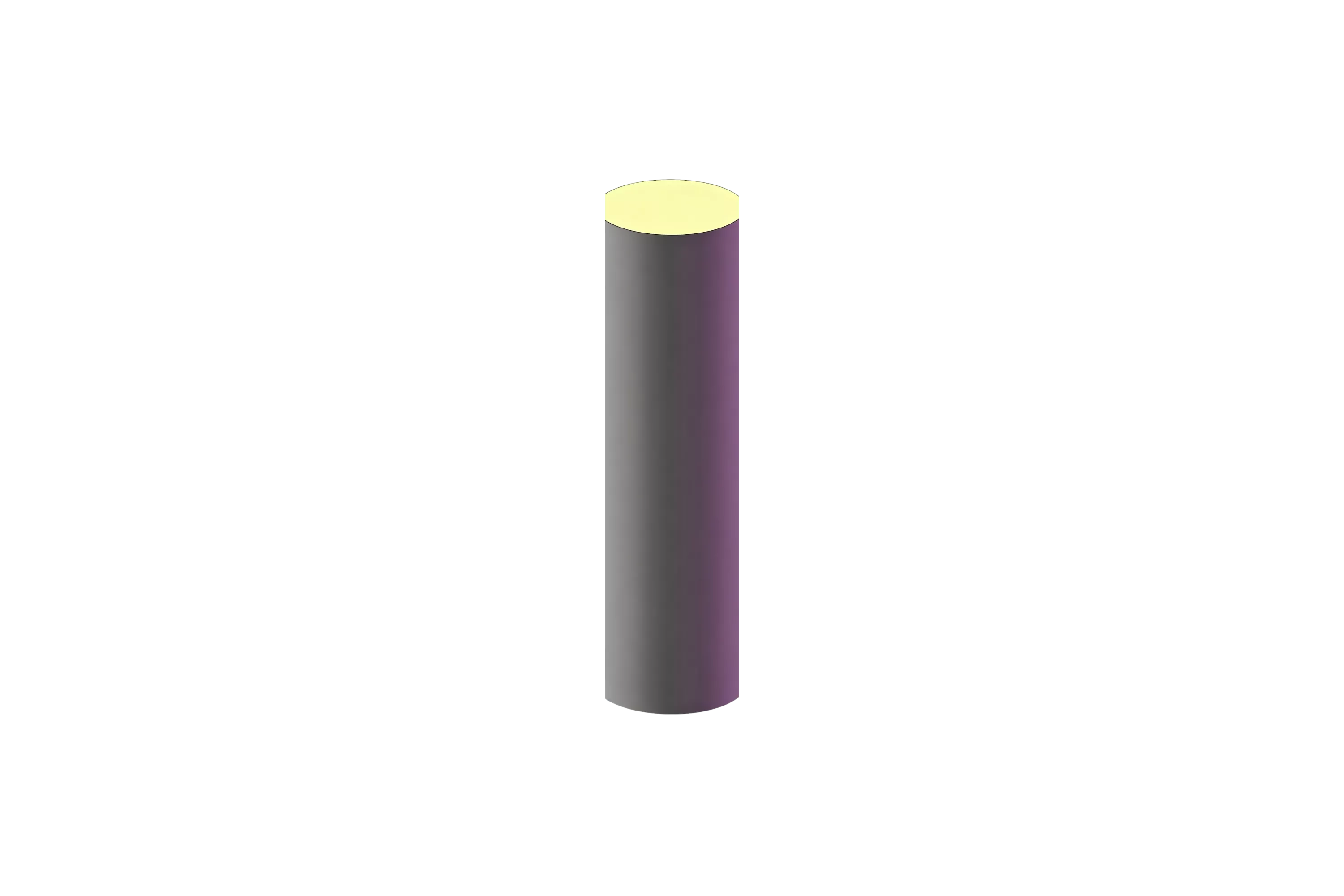

Kovar Column

Kovar column is precisely manufactured from an iron-nickel-cobalt alloy material. Its thermal expansion coefficient (CTE) is highly compatible with that of alumina, aluminum nitride ceramics, and borosilicate glass. This product is specifically designed for high-reliability gas sealing processes, aiming to effectively alleviate the long-term dimensional drift caused by thermal mismatch of different materials, and to provide a durable and stable physical and chemical protective barrier for internal sensitive electronic components.
Copper Core Solder Ball

Copper Core Solder Ball

Copper Core Solder Ball is an excellent solution for POP stacked packaging because it provides encapsulation space stability. It also has a certain application in the narrow-pitch packaging field.
Low Alpha Series

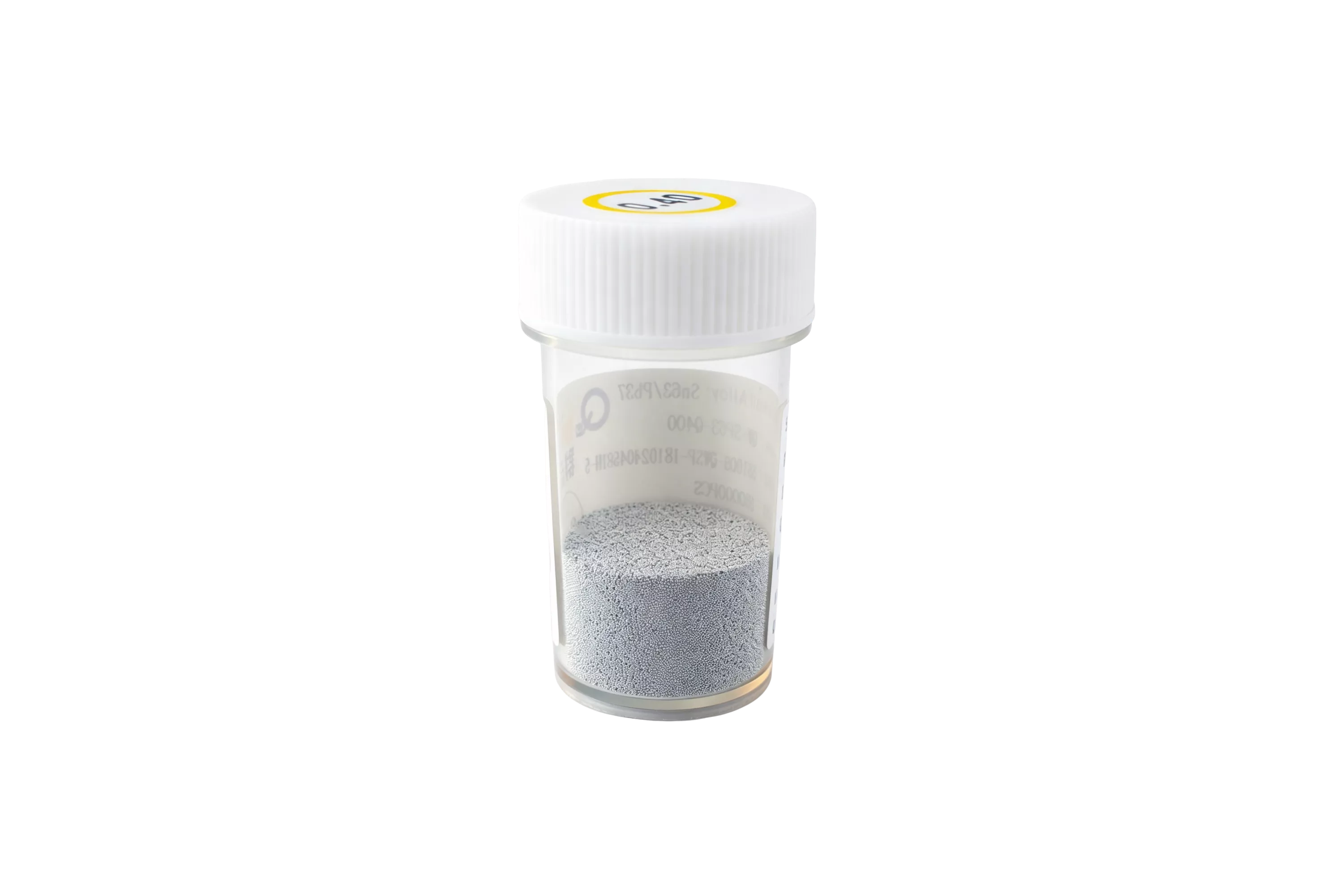

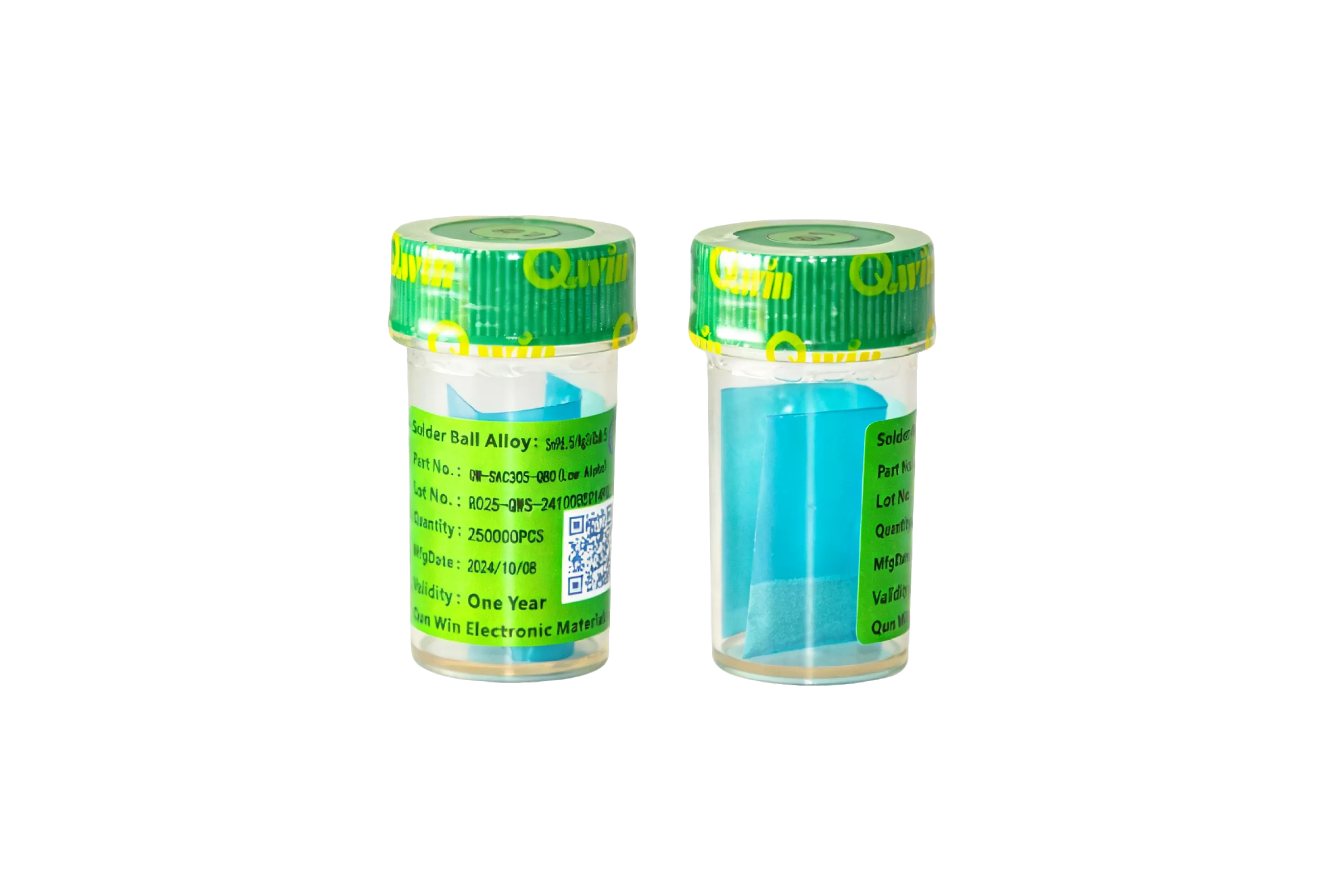

Low Alpha Solder Ball

With the development of flip chip technology, α- particle induced soft errors have gradually become more frequent. Under the current packaging technologies and conditions, the use of low α solder material is a cost-effective measure to reduce the occurrence of soft errors. The LA Sn-based solder products developed by our company are manufactured using low α raw materials, which can effectively reduce the occurrence of soft errors.
Low Alpha Series

Low Alpha Solder Ball

With the development of flip chip technology, α- particle induced soft errors have gradually become more frequent. Under the current packaging technologies and conditions, the use of low α solder material is a cost-effective measure to reduce the occurrence of soft errors. The LA Sn-based solder products developed by our company are manufactured using low α raw materials, which can effectively reduce the occurrence of soft errors.
Solder Ball Series
Solder Column Series
Copper Core Solder Ball
Low Alpha Series
